IRF054 - N-Channel MOSFET Transistor

Description

Drain Current ID=45A@ TC=25℃ Drain Source Voltage- : VDSS= 60V(Min) Static Drain-Source On-Resistance : RDS(on) = 0.05Ω(Max) Simple Drive Requirements APPLICATIONS Switching power supplies Motor controls,Inverters and Choppers Audio amplifiers and high energy puls

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRF054 MOSFET transistor International Rectifier
IRF054SMD N-CHANNEL POWER MOSFET Seme LAB
IRF034 MOSFET transistor International Rectifier
IRF044 N-CHANNEL POWER MOSFET Seme LAB
IRF044 MOSFET transistor International Rectifier

Other Datasheets by Inchange Semiconductor

Part Number Description
IRF034 N-Channel MOSFET Transistor
IRF044 N-Channel MOSFET Transistor
IRF120 N-Channel MOSFET Transistor
IRF121 N-Channel MOSFET Transistor
IRF122 N-Channel MOSFET Transistor

Full PDF Text Transcription

Click to expand full text

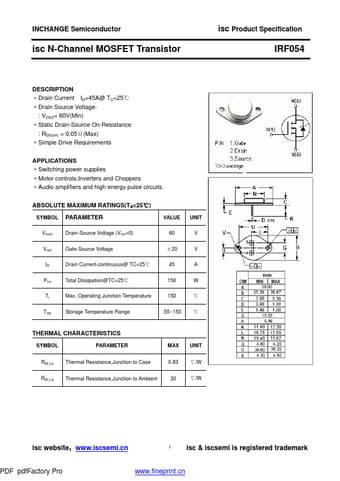

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification IRF054 DESCRIPTION ·Drain Current ID=45A@ TC=25℃ ·Drain Source Voltage- : VDSS= 60V(Min) ·Static Drain-Source On-Resistance : RDS(on) = 0.05Ω(Max) ·Simple Drive Requirements APPLICATIONS ·Switching power supplies ·Motor controls,Inverters and Choppers ·Audio amplifiers and high energy pulse circuits. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS ID Ptot Tj Tstg Drain-Source Voltage (VGS=0) Gate-Source Voltage 60 ±20 V V Drain Current-continuous@ TC=25℃ 45 A Total Dissipation@TC=25℃ 150 W Max.
