D1816 Datasheet - Inchange Semiconductor

D1816, Silicon NPN Power Transistor

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD1816 .
Excellent linearity of hFE. Small and slim package facilitating compactness of sets. Low collector-to-emitter saturation voltage. Fas.

Applications

* Relay drivers,High speed inverters,converters and other general high-current switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 120 V VCEO Collector-Emitter Voltage 100 V VEBO Emitter-Base Voltage 6V IC Collector Curren

D1816-InchangeSemiconductor.pdf

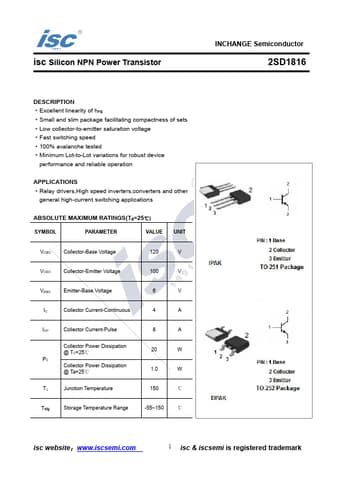

Preview of D1816 PDF
D1816 Datasheet Preview Page 2 D1816 Datasheet Preview Page 3

Datasheet Details

Part number:

D1816

Manufacturer:

Inchange Semiconductor

File Size:

259.61 KB

Description:

Silicon NPN Power Transistor
