BUX20A - Silicon NPN Power Transistor

📥 Download Datasheet

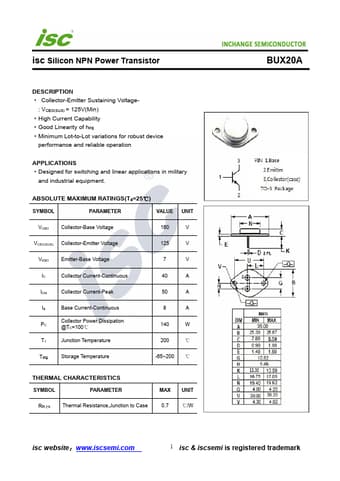

Preview of BUX20A PDF
datasheet Preview Page 2

Datasheet Details

Part number BUX20A
Manufacturer Inchange Semiconductor
File Size 205.49 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet BUX20A_InchangeSemiconductor.pdf

BUX20A Product details

Description

Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 125V(Min) High Current Capability Good Linearity of hFE Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for switching and linear applications in military and industrial equipment.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 160 V VCEO(SUS) Collector-Emitter Voltage 125 V VEBO Emitter-Base Voltage 7 V IC
