5N80 - N-Channel MOSFET Transistor

Product Overview

📥 Download Datasheet

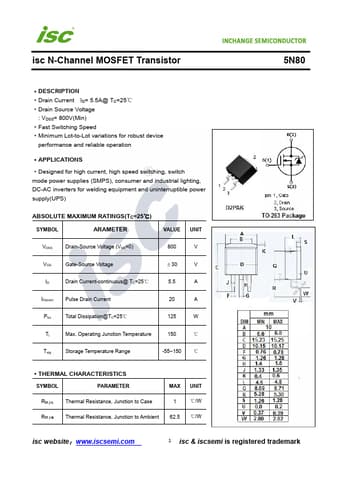

Datasheet preview – 5N80

Datasheet Details

Part number 5N80
Manufacturer Inchange Semiconductor
File Size 227.53 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 5N80 Datasheet
Additional preview pages of the 5N80 datasheet.

Product details

Description

Drain Current ID= 5.5A@ TC=25℃ Drain Source Voltage : VDSS= 800V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS . Designed for high current, high speed switching, switch mode power supplies (SMPS), consumer and industrial lighting, DC-AC inverters for welding equipment and uninterruptible power supply(UPS) ABSOLUTE MAXIMUM RATINGS(TC=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source
