2SK953 - N-Channel MOSFET Transistor

📥 Download Datasheet

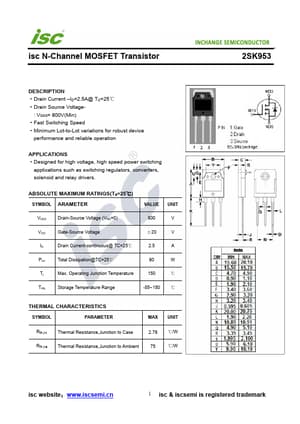

Preview of 2SK953 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SK953
Manufacturer Inchange Semiconductor
File Size 204.02 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK953-InchangeSemiconductor.pdf

2SK953 Product details

Description

Drain Current ID=2.5A@ TC=25℃ Drain Source Voltage- : VDSS= 800V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high voltage, high speed power switching applications such as switching regulators, converters, solenoid and relay drivers.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 800 V VGS Gate-Source Voltage ±20 V
