2SK791 - N-Channel MOSFET Transistor

📥 Download Datasheet

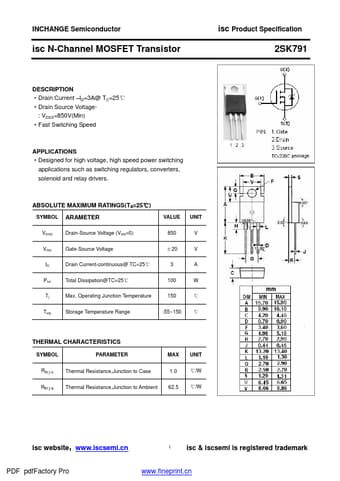

Preview of 2SK791 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SK791
Manufacturer Inchange Semiconductor
File Size 60.94 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK791-InchangeSemiconductor.pdf

2SK791 Product details

Description

Drain Current ID=3A@ TC=25℃ Drain Source Voltage- : VDSS=850V(Min) Fast Switching Speed APPLICATIONS Designed for high voltage, high speed power switching applications such as switching regulators, converters, solenoid and relay drivers.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS VGS ID Ptot Tj Tstg Drain-Source Voltage (VGS=0) 850 V Gate-Source Voltage ±20 V Drain Current-continuous@ TC=25℃ 3 A Total Dissipation@TC=25℃ 100 W Max.O
