2SK604 - N-Channel MOSFET Transistor

Inchange Semiconductor

📥 Download Datasheet

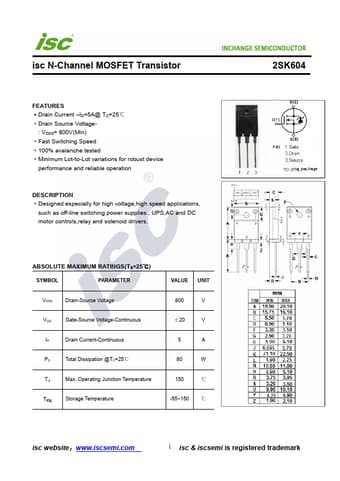

2SK604 Datasheet Preview — Preview of 2SK604 PDF

Datasheet Details

Part number	2SK604
Manufacturer	Inchange Semiconductor
File Size	206.85 KB
Description	N-Channel MOSFET Transistor
Datasheet	2SK604-InchangeSemiconductor.pdf

2SK604 Product details

Description

Designed especially for high voltage,high speed applications, such as off-line switching power supplies , UPS,AC and DC motor controls,relay and solenoid drivers.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous PD Total Dissipation @TC=25℃ TJ Max.Operating Junction Temperature Tstg Storage Temperature VALUE UNIT 800 V ±20 V 5 A 80 W 150 ℃ -55~150 ℃ 2SK604 isc website：www.

Features

Drain Current.
ID=5A@ TC=25℃.
Drain Source Voltage- : VDSS= 800V(Min).
Fast Switching Speed.
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
