2SK512 - N-Channel MOSFET Transistor

The 2SK512 by Inchange Semiconductor is a N-Channel MOSFET Transistor. Below is the official datasheet preview.

📥 Download Datasheet

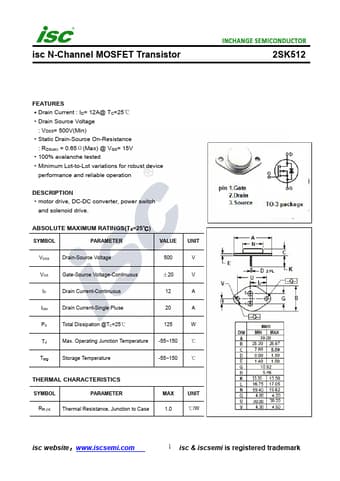

Official preview page of the 2SK512 N-Channel MOSFET Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SK512
Manufacturer Inchange Semiconductor
File Size 276.48 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK512-InchangeSemiconductor.pdf
Additional preview pages of the 2SK512 datasheet.

2SK512 Product details

Description

motor drive, DC-DC converter, power switch and solenoid drive.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 500 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 12 A IDM Drain Current-Single Pluse 20 A PD Total Dissipation @TC=25℃ 125 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Junct

Features
