2SK412 - N-Channel MOSFET Transistor

Inchange Semiconductor

📥 Download Datasheet

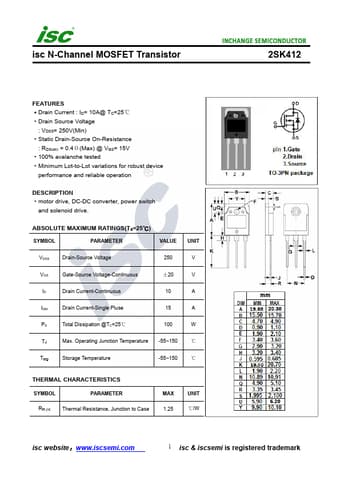

2SK412 Datasheet Preview — Preview of 2SK412 PDF

Datasheet Details

Part number	2SK412
Manufacturer	Inchange Semiconductor
File Size	285.13 KB
Description	N-Channel MOSFET Transistor
Datasheet	2SK412-InchangeSemiconductor.pdf

2SK412 Product details

Description

motor drive, DC-DC converter, power switch and solenoid drive.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 250 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 10 A IDM Drain Current-Single Pluse 15 A PD Total Dissipation @TC=25℃ 100 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Junct

Features

Drain Current : ID= 10A@ TC=25℃.
Drain Source Voltage : VDSS= 250V(Min).
Static Drain-Source On-Resistance : RDS(on) = 0.4Ω(Max) @ VGS= 15V.
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
