2SK3816L - N-Channel MOSFET Transistor

The 2SK3816L by Inchange Semiconductor is a N-Channel MOSFET Transistor. Below is the official datasheet preview.

📥 Download Datasheet

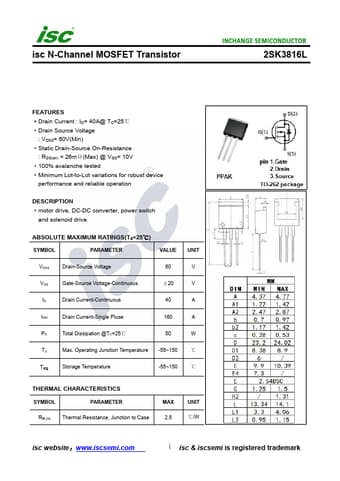

Official preview page of the 2SK3816L N-Channel MOSFET Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SK3816L
Manufacturer Inchange Semiconductor
File Size 282.52 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK3816L-InchangeSemiconductor.pdf
Additional preview pages of the 2SK3816L datasheet.

2SK3816L Product details

Description

motor drive, DC-DC converter, power switch and solenoid drive.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 60 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 40 A IDM Drain Current-Single Pluse 160 A PD Total Dissipation @TC=25℃ 50 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Juncti

Features
