2SK2118 - N-Channel MOSFET Transistor

📥 Download Datasheet

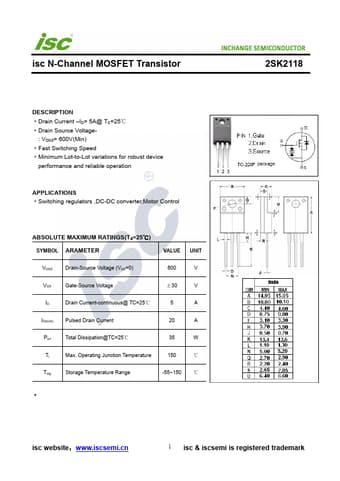

Preview of 2SK2118 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SK2118
Manufacturer Inchange Semiconductor
File Size 213.12 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK2118-InchangeSemiconductor.pdf

2SK2118 Product details

Description

Drain Current ID= 5A@ TC=25℃ Drain Source Voltage- : VDSS= 600V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Switching regulators ,DC-DC converter,Motor Control ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 600 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 5 A ID(puls) Pulsed Drain Current 20 A Ptot
