2SK1807 - N-Channel MOSFET Transistor

📥 Download Datasheet

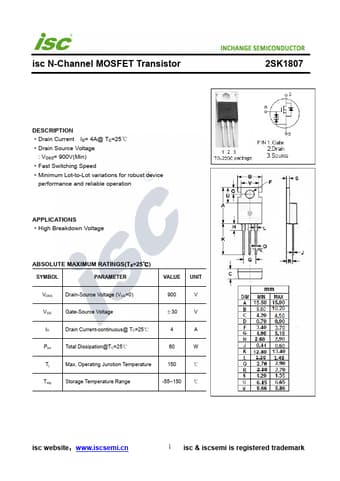

Preview of 2SK1807 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SK1807
Manufacturer Inchange Semiconductor
File Size 216.93 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK1807-InchangeSemiconductor.pdf

2SK1807 Product details

Description

Drain Current ID= 4A@ TC=25℃ Drain Source Voltage : VDSS= 900V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS High Breakdown Voltage ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 900 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 4 A Ptot Total Dissipation@TC=25℃ 60 W Tj Max.Operating Junction Temperature
