2SK1745 - N-Channel MOSFET Transistor

📥 Download Datasheet

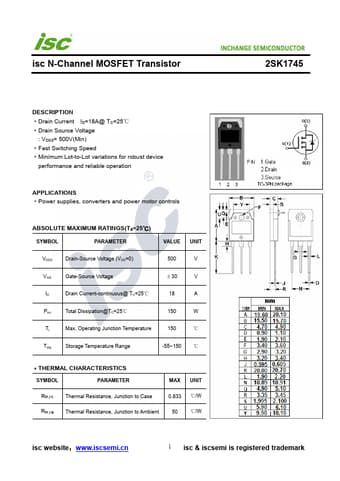

Preview of 2SK1745 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SK1745
Manufacturer Inchange Semiconductor
File Size 221.06 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK1745-InchangeSemiconductor.pdf

2SK1745 Product details

Description

Drain Current ID=18A@ TC=25℃ Drain Source Voltage : VDSS= 500V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Power supplies, converters and power motor controls ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 18 A Ptot Total Dissipation@TC=25℃ 150 W Tj Max.
