2SK1385 - N-Channel MOSFET Transistor

📥 Download Datasheet

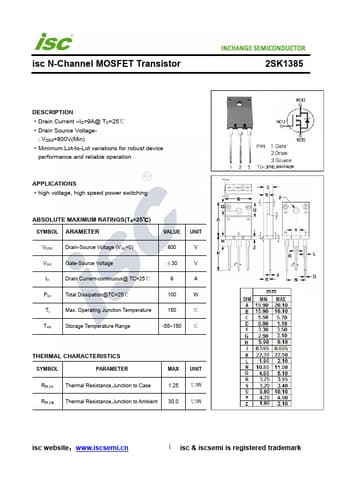

Preview of 2SK1385 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SK1385
Manufacturer Inchange Semiconductor
File Size 204.12 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK1385-InchangeSemiconductor.pdf

2SK1385 Product details

Description

Drain Current ID=9A@ TC=25℃ Drain Source Voltage- : VDSS=800V(Min) Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS high voltage, high speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 800 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 9 A Ptot Total Dissipation@TC=25℃ 100 W Tj Max.Operating Junction Temperature
