2SD2689 - Silicon NPN Power Transistor

The 2SD2689 by Inchange Semiconductor is a Silicon NPN Power Transistor. Below is the official datasheet preview.

📥 Download Datasheet

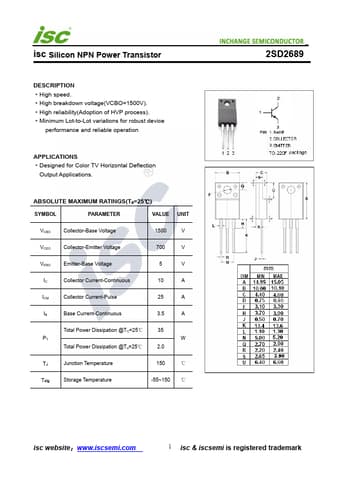

Official preview page of the 2SD2689 Silicon NPN Power Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SD2689
Manufacturer Inchange Semiconductor
File Size 208.85 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet 2SD2689-InchangeSemiconductor.pdf
Additional preview pages of the 2SD2689 datasheet.

2SD2689 Product details

Description

High speed. High breakdown voltage(VCBO=1500V). High reliability(Adoption of HVP process). Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for Color TV Horizontal Deflection Output Applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 700 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 10 A I
