2SC3475 - Power Transistor

Description

Low Collector Saturation Voltage : VCE(sat)= 0.6V(Max)@ IC= 2A High Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS

High speed switching applications.

High speed DC-DC converter applications.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SC3470 - Silicon NPN Epitaxial Transistor (Hitachi Semiconductor)
  • 2SC3474 - Silicon NPN Epitaxial Type TRANSISTOR (Toshiba Semiconductor)
  • 2SC3478 - NPN SILICON TRANSISTORS (NEC)
  • 2SC3478 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC3478A - NPN SILICON TRANSISTORS (NEC)
  • 2SC3400 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo)
  • 2SC3401 - PNP/NPN EPITAXIAL PLANAR SILICON TRANSISTORS (Sanyo)
  • 2SC3402 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SC3402 - NPN Transistor (ETC)
  • 2SC3403 - Silicon PNP Triple-Diffused Planar Type Transistor (ETC)
Other Datasheets by Inchange Semiconductor

Full PDF Text Transcription

Click to expand full text

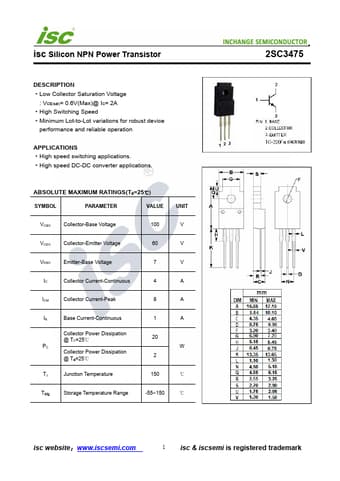

isc Silicon NPN Power Transistor DESCRIPTION ·Low Collector Saturation Voltage : VCE(sat)= 0.6V(Max)@ IC= 2A ·High Switching Speed ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·High speed switching applications. ·High speed DC-DC converter applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 100 V VCEO Collector-Emitter Voltage 60 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 4 A ICM Collector Current-Peak 8 A IB Base Current-Continuous Collector Power Dissipation @ TC=25℃ PC Collector Power Dissipation @ Ta=25℃ TJ Junction Temperature 1 A 20 W 2 150 ℃ Tstg Storage Temperature Range -55~150 ℃ 2SC3475 isc website：www.iscsemi.
