2SC3421 - Silicon NPN Power Transistor

Description

High Collector-Emitter Breakdown Voltage : V(BR)CEO= 120V(Min) Complement to Type 2SA1358 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS

Designed for audio frequency power amplifier applications.

Suitable for driver of 60 to

📥 Download Datasheet

📁 Similar Datasheet

  • 2SC3421 - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SC3421 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC3421 - NPN Transistor (JCET)
  • 2SC3420 - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SC3420 - NPN Transistor (INCHANGE)
  • 2SC3420 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3420 - NPN Transistor (JCET)
  • 2SC3420 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC3420 - NPN Transistor (GME)
  • 2SC3422 - Silicon NPN Transistor (Toshiba Semiconductor)
Other Datasheets by Inchange Semiconductor

Full PDF Text Transcription

Click to expand full text

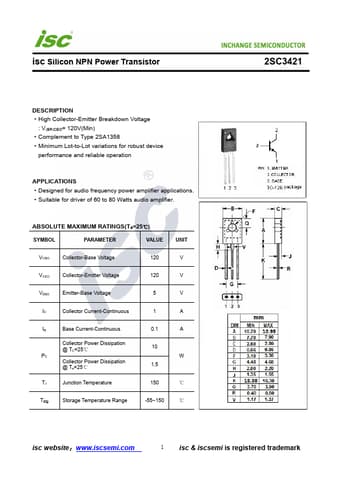

isc Silicon NPN Power Transistor 2SC3421 DESCRIPTION ·High Collector-Emitter Breakdown Voltage : V(BR)CEO= 120V(Min) ·Complement to Type 2SA1358 ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for audio frequency power amplifier applications. ·Suitable for driver of 60 to 80 Watts audio amplifier. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 120 V VCEO Collector-Emitter Voltage 120 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 1 A IB Base Current-Continuous Collector Power Dissipation @ TC=25℃ PC Collector Power Dissipation @ Ta=25℃ TJ Junction Temperature 0.1 A 10 W 1.
