2SC3085 - Silicon NPN Power Transistor

Description

High Breakdown Voltage- : V(BR)CBO= 500V(Min) Fast Switching Speed Wide Area of Safe Operation Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for switching regulator applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYM

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC3085 NPN Triple Diffused Planar Silicon Transistor Sanyo
2SC3082K NPN Silicon Transistor ROHM
2SC3083 NPN Triple Diffused Planar Silicon Transistor Sanyo Semicon Device
2SC3083 NPN Transistor INCHANGE
2SC3083 SILICON POWER TRANSISTOR SavantIC

Other Datasheets by Inchange Semiconductor

Part Number Description
2SC3094 Silicon NPN Power Transistor
2SC3121 Silicon NPN RF Transistor
2SC3122 Silicon NPN RF Transistor
2SC3123 Silicon NPN RF Transistor
2SC3124 Silicon NPN RF Transistor

Full PDF Text Transcription

Click to expand full text

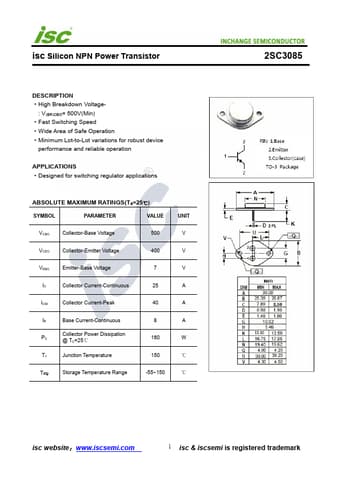

isc Silicon NPN Power Transistor DESCRIPTION ·High Breakdown Voltage- : V(BR)CBO= 500V(Min) ·Fast Switching Speed ·Wide Area of Safe Operation ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for switching regulator applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 500 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 25 A ICM Collector Current-Peak 40 A IB Base Current-Continuous PC Collector Power Dissipation @ TC=25℃ TJ Junction Temperature 8 A 160 W 150 ℃ Tstg Storage Temperature Range -55~150 ℃ 2SC3085 isc website：www.iscsemi.
