2SC2911 - Silicon NPN Power Transistor

The 2SC2911 by Inchange Semiconductor is a Silicon NPN Power Transistor. Below is the official datasheet preview.

📥 Download Datasheet

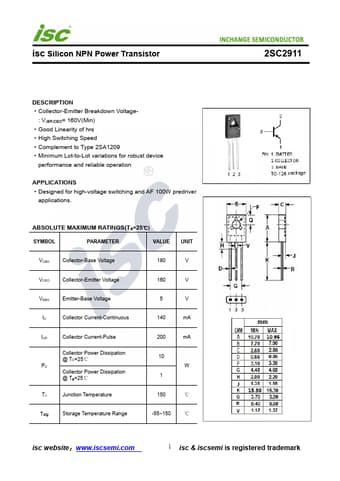

Official preview page of the 2SC2911 Silicon NPN Power Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SC2911
Manufacturer Inchange Semiconductor
File Size 196.12 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet 2SC2911-InchangeSemiconductor.pdf
Additional preview pages of the 2SC2911 datasheet.

2SC2911 Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 160V(Min) Good Linearity of hFE High Switching Speed Complement to Type 2SA1209 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high-voltage switching and AF 100W predriver applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 180 V VCEO Collector-Emitter Voltage 160 V VEBO Emitter-Base Voltage
