2SC1871A - Silicon NPN Power Transistors

Description

Collector-Emitter Sustaining Voltage- VCEO(SUS)= 400V(Min) 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Automotive ignition Switching regulator Motor control applications ABSOLUTE MAXIMUM RATINGS

📥 Download Datasheet

📁 Similar Datasheet

  • 2SC1871A - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC1870 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC1879 - Silicon NPN Transistor (Hitachi)
  • 2SC1803 - NPN Silicon Transistor (ETC)
  • 2SC1809 - RF Amplifier / Epitaxial Planar NPN Silicon Transistor (Rohm)
  • 2SC1809 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC1810 - NPN Transistor (ETC)
  • 2SC1812 - NPN EPITAXIAL SILICON TRANSISTOR (WEJ)
  • 2SC1815 - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SC1815 - NPN SILICON TRANSISTOR (UTC)
Other Datasheets by Inchange Semiconductor
  • 2SC1870 - Silicon NPN Power Transistors
  • 2SC1875 - Silicon NPN Power Transistors
  • 2SC1815 - Silicon NPN Power Transistor
  • 2SC1827 - Silicon NPN Power Transistors
  • 2SC1881K - Silicon NPN Power Transistor
  • 2SC1061 - Silicon NPN Power Transistors
  • 2SC1383 - Silicon NPN Transistor
  • 2SC1433 - Silicon NPN Power Transistors

Full PDF Text Transcription

Click to expand full text

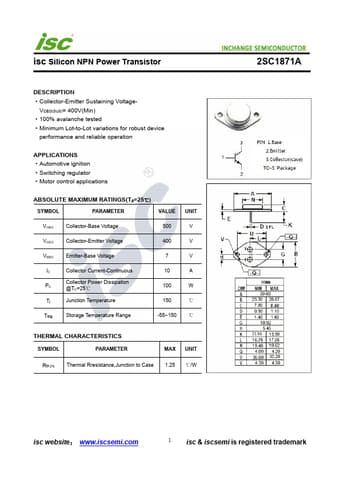

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC1871A DESCRIPTION ·Collector-Emitter Sustaining Voltage- VCEO(SUS)= 400V(Min) ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Automotive ignition ·Switching regulator ·Motor control applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 500 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous PC Collector Power Dissipation @TC=25℃ Tj Junction Temperature Tstg Storage Temperature Range 10 A 100 W 150 ℃ -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth j-c Thermal Rresistance,Junction to Case 1.
