2SA914 - POWER TRANSISTOR

The 2SA914 by Inchange Semiconductor is a POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SA914 POWER TRANSISTOR datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SA914
Manufacturer Inchange Semiconductor
File Size 146.14 KB
Description POWER TRANSISTOR
Datasheet download datasheet 2SA914_InchangeSemiconductor.pdf
Additional preview pages of the 2SA914 datasheet.

2SA914 Product details

Description

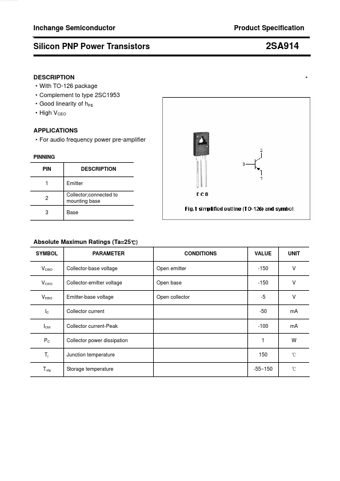

With TO-126 package Complement to type 2SC1953 Good linearity of hFE High VCEO APPLICATIONS For audio frequency power pre-amplifier PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute Maximun Ratings (Ta=25℃) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-Peak Collector power dissipation Junction temperature Storage tem
