2SA653 - POWER TRANSISTOR

📥 Download Datasheet

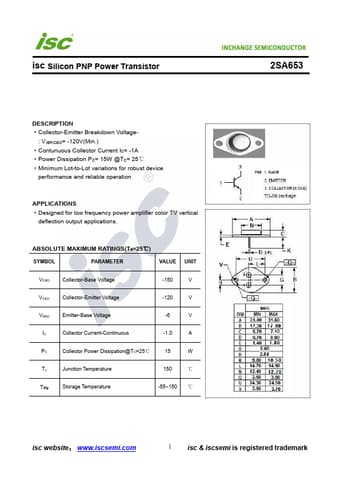

Preview of 2SA653 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SA653
Manufacturer Inchange Semiconductor
File Size 189.84 KB
Description POWER TRANSISTOR
Datasheet download datasheet 2SA653_InchangeSemiconductor.pdf

2SA653 Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= -120V(Min.) Contunuous Collector Current IC= -1A Power Dissipation PC= 15W @TC= 25℃ Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for low frequency power amplifier color TV vertical deflection output applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -150 V VCEO Collector-Emitter Voltage -120 V VEBO
