2SA2222SG - Silicon PNP Power Transistor

Inchange Semiconductor

📥 Download Datasheet

2SA2222SG Datasheet Preview — Preview of 2SA2222SG PDF

Datasheet Details

Part number	2SA2222SG
Manufacturer	Inchange Semiconductor
File Size	167.71 KB
Description	Silicon PNP Power Transistor
Datasheet	2SA2222SG-InchangeSemiconductor.pdf

2SA2222SG Product details

Description

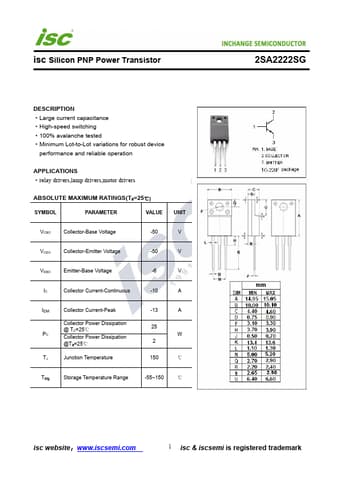

Large current capacitance High-speed switching 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS relay drivers,lamp drivers,motor drivers ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -50 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -6 V IC Collector Current-Continuous -10 A ICM Collector Current-Peak Collector Power
