2SA1887 - Power Transistor

The 2SA1887 by Inchange Semiconductor is a Power Transistor. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SA1887 Power Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SA1887
Manufacturer Inchange Semiconductor
File Size 180.61 KB
Description Power Transistor
Datasheet download datasheet 2SA1887_InchangeSemiconductor.pdf

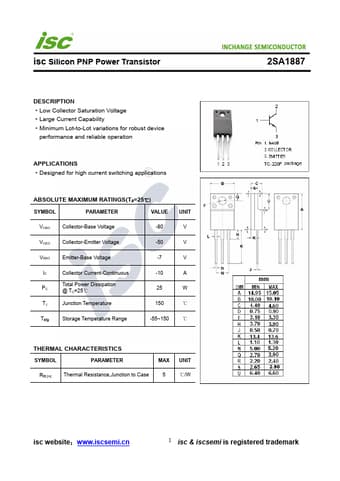

Additional preview pages of the 2SA1887 datasheet.

2SA1887 Product details

Description

Low Collector Saturation Voltage Large Current Capability Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high current switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -80 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -7 V IC Collector Current-Continuous PC Total Power Dissipation @ TC=25℃ TJ Junction Temperature
