2SA1879 - Power Transistor

The 2SA1879 by Inchange Semiconductor is a Power Transistor. Below is the official datasheet preview.

📥 Download Datasheet

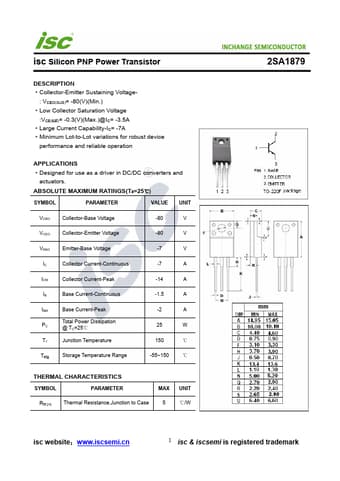

Official preview page of the 2SA1879 Power Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SA1879
Manufacturer Inchange Semiconductor
File Size 184.23 KB
Description Power Transistor
Datasheet download datasheet 2SA1879_InchangeSemiconductor.pdf
Additional preview pages of the 2SA1879 datasheet.

2SA1879 Product details

Description

Collector-Emitter Sustaining Voltage- : VCEO(SUS)= -80(V)(Min.) Low Collector Saturation Voltage :VCE(sat)= -0.3(V)(Max.)@IC= -3.5A Large Current Capability-IC= -7A Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use as a driver in DC/DC converters and actuators.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -80 V VCEO Collector-Emitter Voltage -80 V VEBO E
