2SA1657 - Silicon PNP Power Transistor

📥 Download Datasheet

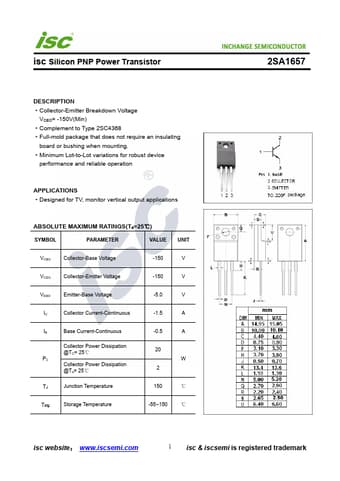

Preview of 2SA1657 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SA1657
Manufacturer Inchange Semiconductor
File Size 210.19 KB
Description Silicon PNP Power Transistor
Datasheet download datasheet 2SA1657-InchangeSemiconductor.pdf

2SA1657 Product details

Description

Collector-Emitter Breakdown Voltage VCEO= -150V(Min) Complement to Type 2SC4368 Full-mold package that does not require an insulating board or bushing when mounting. Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for TV, monitor vertical output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -150 V VCEO Collector-Emitter Voltage -150 V VEBO Emit
