2SA1640 - POWER TRANSISTOR

The 2SA1640 by Inchange Semiconductor is a POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

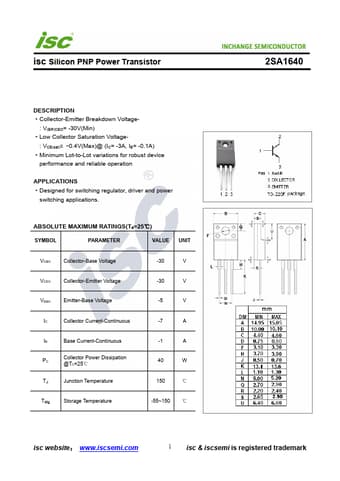

Official preview page of the 2SA1640 POWER TRANSISTOR datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SA1640
Manufacturer Inchange Semiconductor
File Size 209.43 KB
Description POWER TRANSISTOR
Datasheet download datasheet 2SA1640_InchangeSemiconductor.pdf
Additional preview pages of the 2SA1640 datasheet.

2SA1640 Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= -30V(Min) Low Collector Saturation Voltage- : VCE(sat)= -0.4V(Max)@ (IC= -3A, IB= -0.1A) Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for switching regulator, driver and power switching applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -30 V VCEO Collector-Emitter Voltage -30 V VEBO Emitter-Base Voltage
