2SA1129 - POWER TRANSISTOR

The 2SA1129 by Inchange Semiconductor is a POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

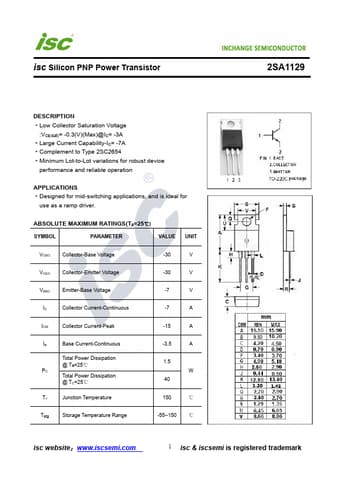

Official preview page of the 2SA1129 POWER TRANSISTOR datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SA1129
Manufacturer Inchange Semiconductor
File Size 220.97 KB
Description POWER TRANSISTOR
Datasheet download datasheet 2SA1129_InchangeSemiconductor.pdf
Additional preview pages of the 2SA1129 datasheet.

2SA1129 Product details

Description

Low Collector Saturation Voltage :VCE(sat)= -0.3(V)(Max)@IC= -3A Large Current Capability-IC= -7A Complement to Type 2SC2654 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for mid-switching applications, and is ideal for use as a ramp driver.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -30 V VCEO Collector-Emitter Voltage -30 V VEBO Emitter-Base Voltage -
