2N5493 - Silicon NPN Power Transistor

📥 Download Datasheet

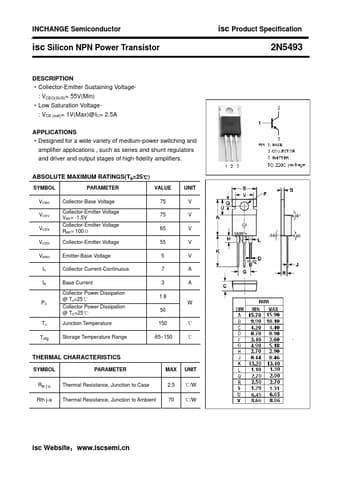

Preview of 2N5493 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2N5493
Manufacturer Inchange Semiconductor
File Size 81.88 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet 2N5493-InchangeSemiconductor.pdf

2N5493 Product details

Description

Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 55V(Min) Low Saturation Voltage- : VCE (sat)= 1V(Max)@IC= 2.5A APPLICATIONS Designed for a wide variety of medium-power switching and amplifier applications , such as series and shunt regulators and driver and output stages of high-fidelity amplifiers.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VCBO VCEV VCER VCEO Collector-Base Voltage Collector-Emitter Voltage VBE= -1.5V Collector-Emitter Voltage RBE= 100Ω Col
