2N3863 - Silicon NPN Power Transistor

Description

Excellent Safe Operating Area Low Collector-Emitter Saturation Voltage 100% avalanche tested

and reliable operation.

amplifier applications.

📥 Download Datasheet

📁 Similar Datasheet

  • 2N3864 - NPN Transistor (INCHANGE)
  • 2N3865 - NPN Transistor (INCHANGE)
  • 2N3866 - Silicon planar epitaxial overlay transistors (NXP)
  • 2N3866 - RF & MICROWAVE DISCRETE LOW-POWER TRANSISTORS (Microsemi Corporation)
  • 2N3866 - NPN SILICON HIGH FREQUENCY TRANSISTOR (Advanced Semiconductor)
  • 2N3866 - HIGH-FREQUENCY TRANSISTOR (Motorola)
  • 2N3866 - RF & MICROWAVE DISCRETE LOW POWER TRANSISTORS (Advanced Power Technology)
  • 2N3866 - Silicon Planar Epitaxial Transistors (Comset Semiconductor)
  • 2N3866 - NPN SILICON HIGH FREQUENCY TRANSISTOR (Central Semiconductor)
  • 2N3866A - NPN Transistor (Semicoa Semiconductor)
Other Datasheets by Inchange Semiconductor
  • 2N3866 - Silicon NPN Power Transistor
  • 2N3019 - Silicon NPN Power Transistor
  • 2N3053 - Silicon NPN Power Transistor
  • 2N3054 - Silicon NPN Power Transistors
  • 2N3054A - Silicon NPN Power Transistors
  • 2N3055H - Silicon NPN Power Transistor
  • 2N3171 - Silicon PNP Power Transistor
  • 2N3172 - Silicon PNP Power Transistor

Full PDF Text Transcription

Click to expand full text

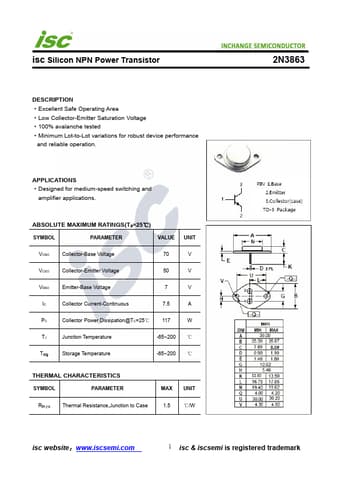

isc Silicon NPN Power Transistor DESCRIPTION ·Excellent Safe Operating Area ·Low Collector-Emitter Saturation Voltage ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation. APPLICATIONS ·Designed for medium-speed switching and amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 70 V VCEO Collector-Emitter Voltage 50 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 7.5 A PC Collector Power Dissipation@TC=25℃ 117 W TJ Junction Temperature -65~200 ℃ Tstg Storage Temperature -65~200 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance,Junction to Case MAX UNIT 1.5 ℃/W 2N3863 isc website：www.iscsemi.
