25N05 N-Channel MOSFET

Inchange Semiconductor

Description

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification 25N05 *.

📥 Download Datasheet

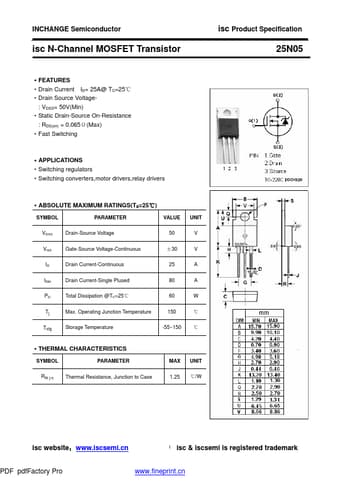

25N05 Datasheet Preview — Preview of 25N05 PDF

Datasheet Specifications

Part number: 25N05
Manufacturer: Inchange Semiconductor
File Size: 59.71 KB
Datasheet: 25N05-InchangeSemiconductor.pdf
Description: N-Channel MOSFET

Features

* Drain Current ID= 25A@ TC=25℃
* Drain Source Voltage- : VDSS= 50V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 0.065Ω(Max)
* Fast Switching

Applications

* Switching regulators
* Switching converters,motor drivers,relay drivers
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 50 ±30 V V ID Drain Current-Continuous 25 A IDM Drain Current-Single Plused 80 A
