18N50 - N-Channel Mosfet Transistor

The 18N50 by Inchange Semiconductor is a N-Channel Mosfet Transistor. Below is the official datasheet preview.

📥 Download Datasheet

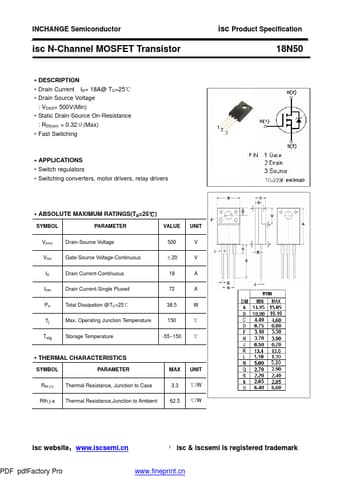

Official preview page of the 18N50 N-Channel Mosfet Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number 18N50
Manufacturer Inchange Semiconductor
File Size 48.76 KB
Description N-Channel Mosfet Transistor
Datasheet download datasheet 18N50-InchangeSemiconductor.pdf
Additional preview pages of the 18N50 datasheet.

18N50 Product details

Description

Drain Current ID= 18A@ TC=25℃ Drain Source Voltage : VDSS= 500V(Min) Static Drain-Source On-Resistance : RDS(on) = 0.32Ω(Max) Fast Switching APPLICATIONS Switch regulators Switching converters, motor drivers, relay drivers isc Product Specification 18N50 ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 500 ±20 V V ID Drain Current-Continuous 18 A IDM Drain Current-Single
