12N50 N-Channel Mosfet Transistor

12N50 Description

isc N-Channel MOSFET Transistor *.

12N50 Features

* Drain Current ID= 12A@ TC=25℃
* Drain Source Voltage- : VDSS= 500V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 0.5Ω(Max)
* Fast Switching
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

12N50 Applications

* Switch mode power supply.
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 500 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 12 A IDM Drain Current-Single Plused 48 A PD Total Dissipation @TC=25℃ 150 W

📥 Download Datasheet

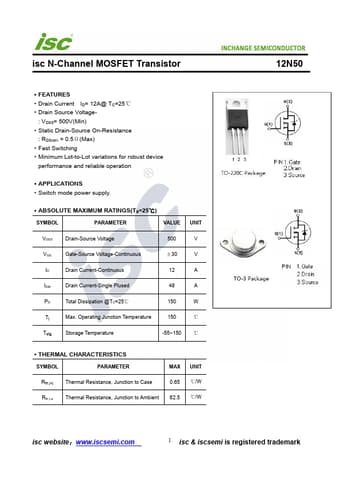

Preview of 12N50 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
12N50
Manufacturer
Inchange Semiconductor
File Size
260.78 KB
Datasheet
12N50-InchangeSemiconductor.pdf
Description
N-Channel Mosfet Transistor
