ILC1832 - uP SUPERVISORY CIRCUIT

Datasheet Details

Part number	ILC1832
Manufacturer	Impala Linear Corporation
File Size	77.12 KB
Description	uP SUPERVISORY CIRCUIT
Datasheet	ILC1832_ImpalaLinearCorporation.pdf

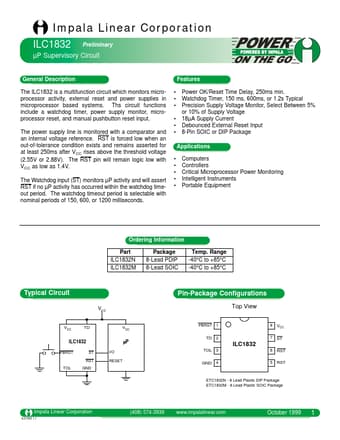

The ILC1832 is a multifunction circuit which monitors microprocessor activity, external reset and power supplies in microprocessor based systems. Ths circuit functions include a watchdog timer, power supply monitor, microprocessor reset, and manual pushbutton reset input. The power supply line is monitored with a comparator and an internal voltage reference. RST is forced low when an out-of-tolerance condition exists and remains asserted for at least 250ms after VCC rises above the threshold vo.
