VVZB170-16ioXT - Thyristor Module

Product Overview

IXYS

Part number	VVZB170-16ioXT
Manufacturer	IXYS
File Size	464.35 KB
Description	Thyristor Module
Datasheet	VVZB170-16ioXT Datasheet

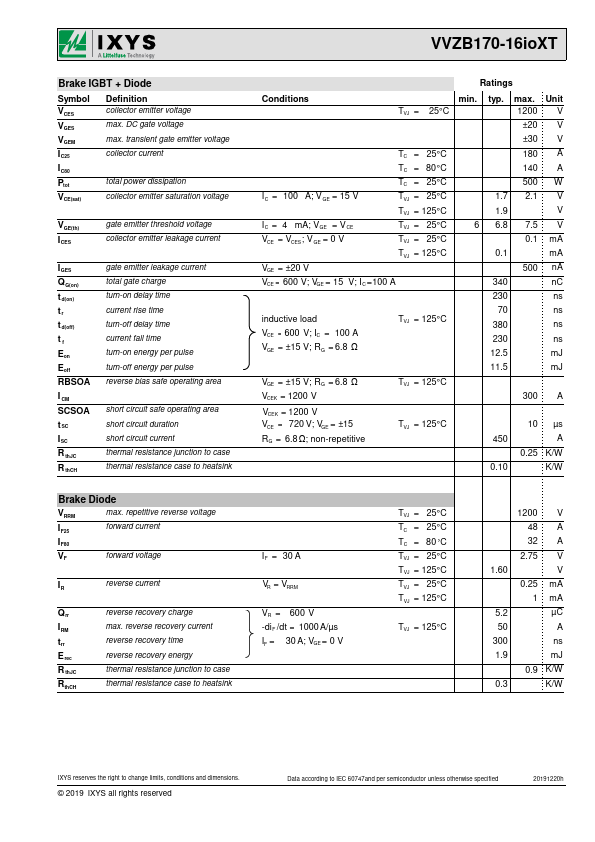

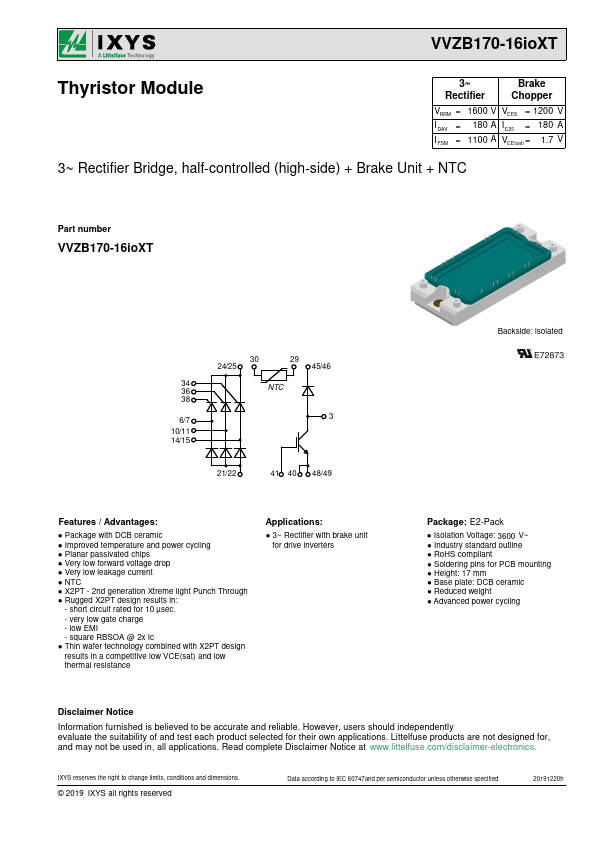

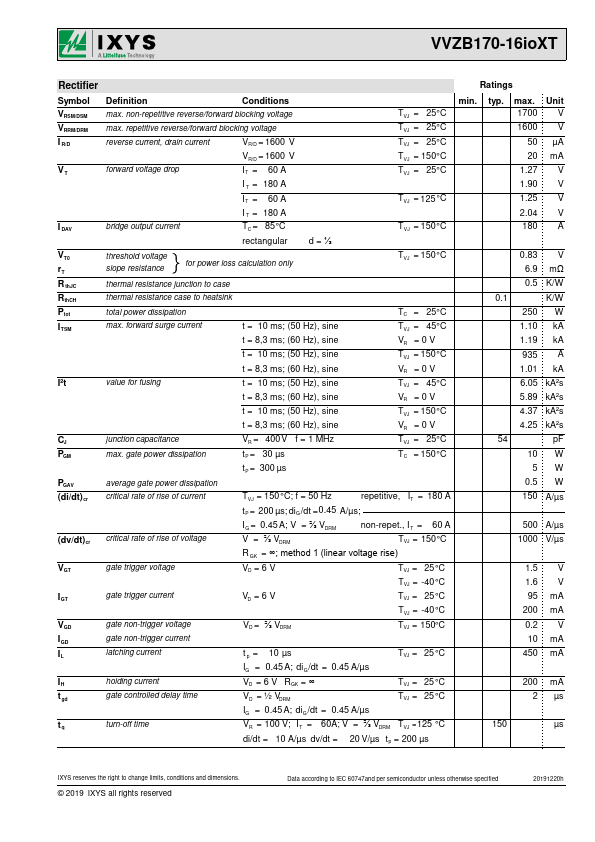

Additional preview pages of the VVZB170-16ioXT datasheet.

/ Advantages:.
Package with DCB ceramic.
Improved temperature and power cycling.
Planar passivated chips.
Very low forward voltage drop.
Very low leakage current.
NTC.
X2PT - 2nd generation Xtreme light Punch Through.
Rugged X2PT design results in: - short circuit rated for 10 µsec. - very low gate charge - low EMI - square RBSOA @ 2x Ic.
Thin wafer technology combined with X2PT design results in a competitive low VCE(sat) and low thermal resistance.
