VBO25-16AO2 - Avalanche Rectifier

Features

  • / Advantages:.
  • Planar passivated chips.
  • Very low leakage current.
  • Very low forward voltage drop.
  • Improved thermal behaviour + D1 D3 ~ ~ D2 D4 -.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
VBO25 Single Phase Rectifier Bridge IXYS Corporation
VBO20 Single Phase Rectifier Bridge IXYS Corporation
VBO22 Single Phase Rectifier Bridge IXYS Corporation
VBO105 Single Phase Rectifier Bridge IXYS Corporation
VBO125 Single Phase Rectifier Bridge IXYS Corporation

Other Datasheets by IXYS (Littelfuse)

Part Number Description
VBO20-08NO2 Single Phase Rectifier Bridge
VBO20-12AO2 Single Phase Rectifier Bridge
VBO20-12NO2 Single Phase Rectifier Bridge
VBO20-16AO2 Single Phase Rectifier Bridge
VBO20-16NO2 Single Phase Rectifier Bridge

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

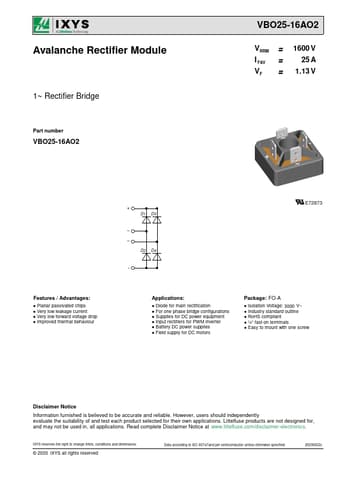

Avalanche Rectifier Module 1~ Rectifier Bridge Part number VBO25-16AO2 VBO25-16AO2 VRRM = 1600 V I FAV = 25 A VF = 1.13 V Features / Advantages: ● Planar passivated chips ● Very low leakage current ● Very low forward voltage drop ● Improved thermal behaviour + D1 D3 ~ ~ D2 D4 - Applications: ● Diode for main rectification ● For one phase bridge configurations ● Supplies for DC power equipment ● Input rectifiers for PWM inverter ● Battery DC power supplies ● Field supply for DC motors Package: FO-A ● Isolation Voltage: 3000 V~ ● Industry standard outline ● RoHS compliant ● ¼“ fast-on terminals ● Easy to mount with one screw Disclaimer Notice Information furnished is believed to be accurate and reliable.
