S0300SR12Y, Symmetrical Gate Turn-Off Thyristor

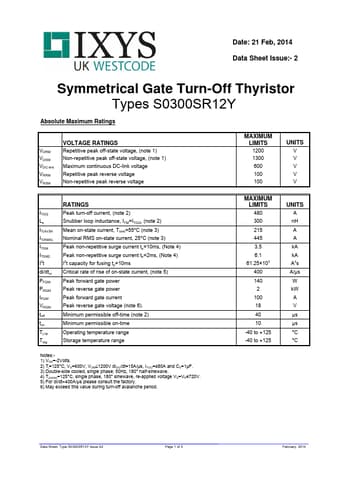

Date: 21 Feb, 2014 Data Sheet Issue:- 2 Symmetrical Gate Turn-Off Thyristor Types S0300SR12Y Absolute Maximum Ratings VDRM VDSM VDC-link VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Maximum continuous DC-link voltage Repetitive peak reverse voltage Non-repetitive peak reverse voltage MAXIMUM LIMITS 1200 1300 600 100 100 UNITS V V V V V ITGQ Ls IT(AV)M IT(RMS) ITSM ITSM2 I2t di/dtcr PFGM PRGM IFGM VRGM toff ton Tj op
