R3708FC42X - Distributed Gate Asymmetric Thyristor

Download the R3708FC42X datasheet PDF (R3708FC40V included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for distributed gate asymmetric thyristor.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (R3708FC40V-IXYS.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • R3708FC45 - HIGH POWER THYRISTOR (YZPST)
  • R3708FD45 - HIGH POWER THYRISTOR (YZPST)
  • R3710 - Preconfigured DSP (ON Semiconductor)
  • R37100 - Silicon Power Rectifier (Microsemi Corporation)
  • R37120 - Silicon Power Rectifier (Microsemi Corporation)
  • R37140 - Silicon Power Rectifier (Microsemi Corporation)
  • R37160 - Silicon Power Rectifier (Microsemi Corporation)
  • R3720 - Silicon Power Rectifier (Microsemi Corporation)
  • R374 - PHOTOMULTIPLIER TUBE (Hamamatsu Corporation)
  • R3740 - Silicon Power Rectifier (Microsemi Corporation)
Other Datasheets by IXYS
  • R3708FC42V - Distributed Gate Asymmetric Thyristor
  • R3708FC42W - Distributed Gate Asymmetric Thyristor
  • R3708FC40V - Distributed Gate Asymmetric Thyristor
  • R3708FC40W - Distributed Gate Asymmetric Thyristor
  • R3708FC40X - Distributed Gate Asymmetric Thyristor
  • R3708FC44V - Distributed Gate Asymmetric Thyristor
  • R3708FC44W - Distributed Gate Asymmetric Thyristor
  • R3708FC44X - Distributed Gate Asymmetric Thyristor

Full PDF Text Transcription

Click to expand full text

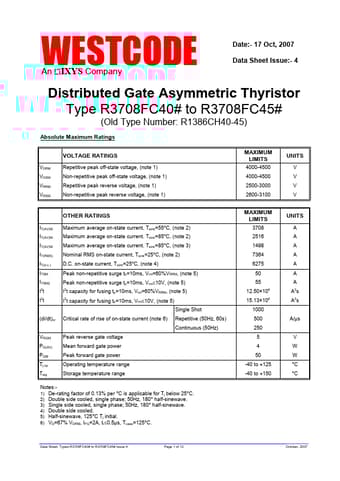

WESTCODE An IXYS Company Date:- 17 Oct, 2007 Data Sheet Issue:- 4 Distributed Gate Asymmetric Thyristor Type R3708FC40# to R3708FC45# (Old Type Number: R1386CH40-45) Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 4000-4500 4000-4500 2500-3000 2600-3100 UNITS V V V V OTHER RATINGS IT(AV)M IT(AV)M IT(AV)M IT(RMS) IT(d.c.) ITSM ITSM2 I2t I2t (di/dt)cr VRGM PG(AV) PGM Tj op Tstg Maximum average on-state current, Tsink=55°C, (note 2) Maximum average on-state current. Tsink=85°C, (note 2) Maximum average on-state current.
