N2520ML120, N2520ML080 Datasheet - IXYS

N2520ML120 Phase Control Thyristor

Date:- 07 Nov, 2013 Data Sheet Issue:- 1 Wespack Phase Control Thyristor Types N2520ML080 to N2520ML140 Development Type No.: NX366ML140 Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 800-1400 800-1400 800-1400 900-1500 UNITS V V V V OTHER RATINGS IT(AV)M IT(AV)M IT(AV)M IT(RMS)M IT(.

N2520ML080-IXYS.pdf

This datasheet PDF includes multiple part numbers: N2520ML120, N2520ML080. Please refer to the document for exact specifications by model.

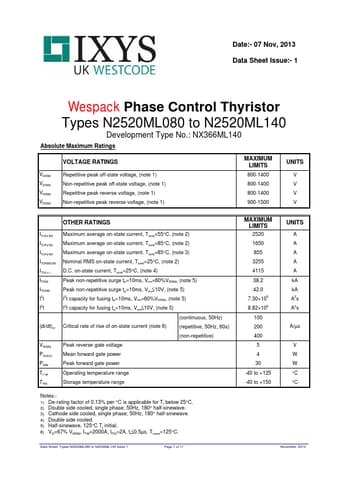

N2520ML120 Datasheet Preview Page 2 N2520ML120 Datasheet Preview Page 3

Datasheet Details

Part number:

N2520ML120, N2520ML080

Manufacturer:

IXYS

File Size:

261.26 KB

Description:

Phase control thyristor.

Note:

This datasheet PDF includes multiple part numbers: N2520ML120, N2520ML080.
Please refer to the document for exact specifications by model.
