MDD175-28N1 - High Voltage Standard Rectifier Module

MDD175-28N1 Description

High Voltage Standard Rectifier Module Phase leg MDD175-28N1 VRRM I FAV VF = 2x 2800 V = 240 A = 1,01 V Part number MDD175-28N1 2 1 3 Backside.

MDD175-28N1 Features

* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very low forward voltage drop

MDD175-28N1 Applications

* Diode for main rectification
* For single and three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: Y1
* Isolation Voltage: 4800 V~
* Industry stand

📥 Download Datasheet

Preview of MDD175-28N1 PDF

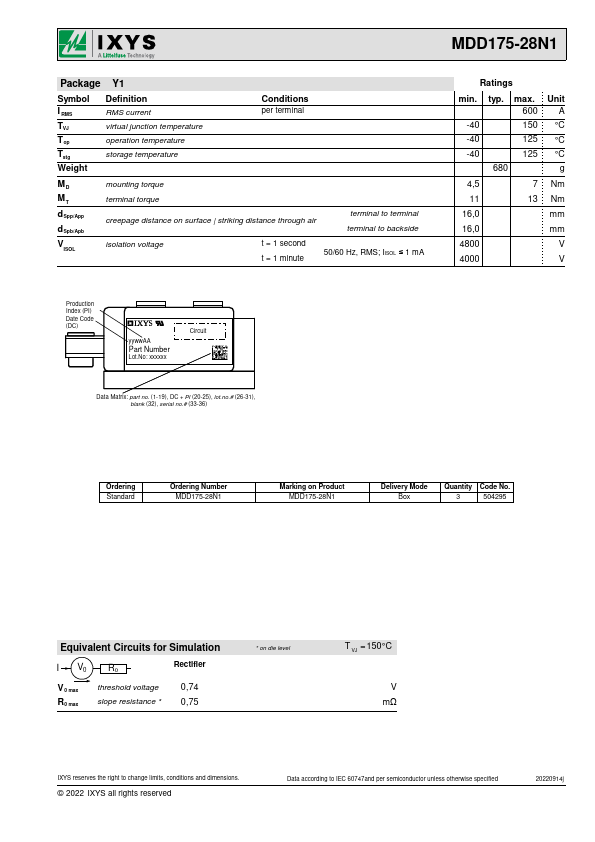

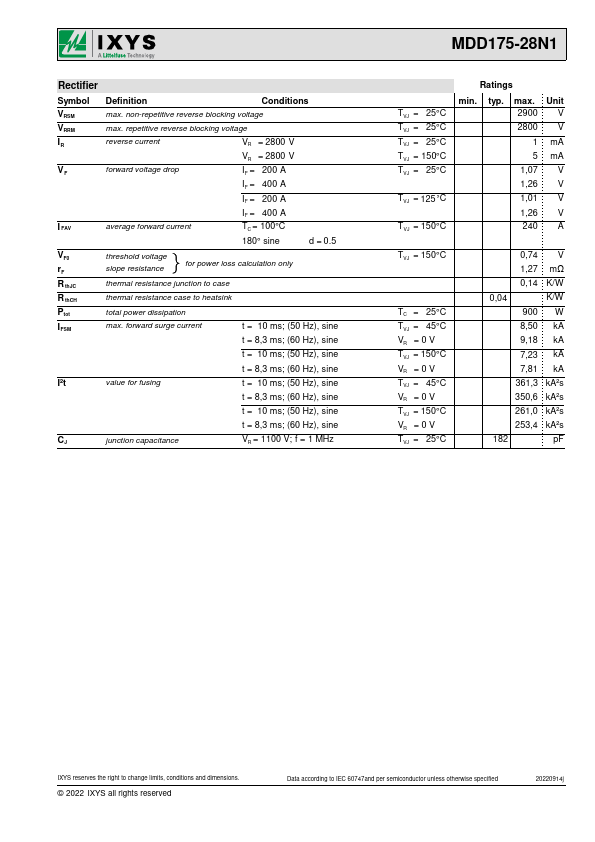

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MDD175-28N1
Manufacturer
IXYS
File Size
118.89 KB
Datasheet
MDD175-28N1-IXYS.pdf
Description
High Voltage Standard Rectifier Module
