MCO600-16io1 - Thyristor Module

Features

  • / Advantages:.
  • Thyristor for line frequency.
  • Planar passivated chip.
  • Long-term stability.
  • Direct Copper Bonded Al2O3-ceramic.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MCO-1500A TTL/HCMOS Crystal Oscillators Shenzhen Great Electronics
MCO-1500B TTL/HCMOS Crystal Oscillators Shenzhen Great Electronics
MCO-1510A (MCO-1510A/B) 14Pin Dip ETC
MCO-1510B (MCO-1510A/B) 14Pin Dip ETC
MCO-1S SMD Clock Oscillator HCMOS/TTL QUARTZCOM the communications

Other Datasheets by IXYS (Littelfuse)

Part Number Description
MCO600-20io1 High Voltage Thyristor
MCO600-22io1 High Voltage Thyristor
MCO100 Single Thyristor Module
MCO100-12io1 Thyristor
MCO100-16io1 Thyristor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

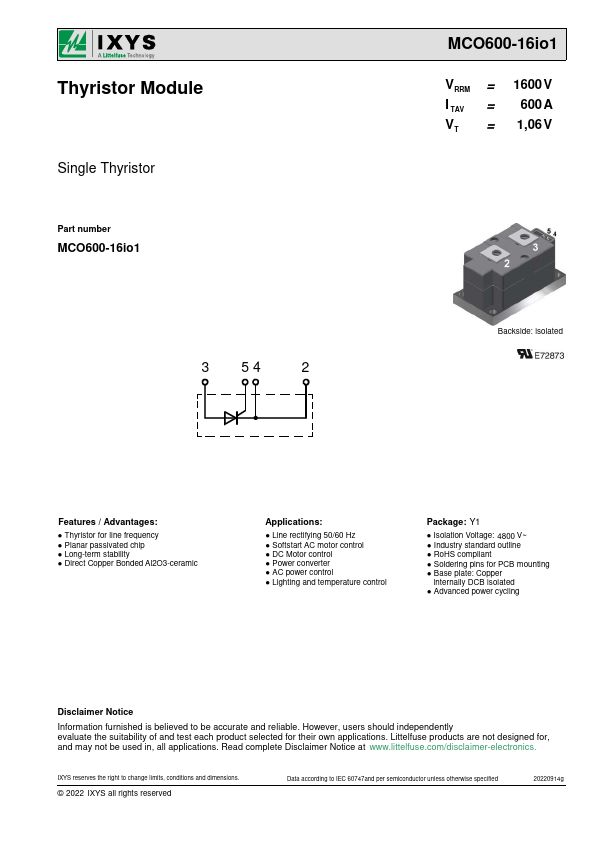

Thyristor Module Single Thyristor Part number MCO600-16io1 3 54 2 MCO600-16io1 VRRM = I TAV = VT = 1600 V 600 A 1,06 V Backside: isolated Features / Advantages: ● Thyristor for line frequency ● Planar passivated chip ● Long-term stability ● Direct Copper Bonded Al2O3-ceramic Applications: ● Line rectifying 50/60 Hz ● Softstart AC motor control ● DC Motor control ● Power converter ● AC power control ● Lighting and temperature control Package: Y1 ● Isolation Voltage: 4800 V~ ● Industry standard outline ● RoHS compliant ● Soldering pins for PCB mounting ● Base plate: Copper internally DCB isolated ● Advanced power cycling Disclaimer Notice Information furnished is believed to be accurate and reliable.
