Description
M = Module C = Thyristor (SCR) N = High Voltage Thyristor A = (>= 2000V) 650 = Current Rating [A] PD = Phase leg 2200 = Reverse Voltage [V] CB = ComPack
Ordering Standard
Ordering Number MCNA650PD2200CB
Marking on Product MCNA650PD2200CB
Delivery Mode Box
Quantity Code No.3
516103

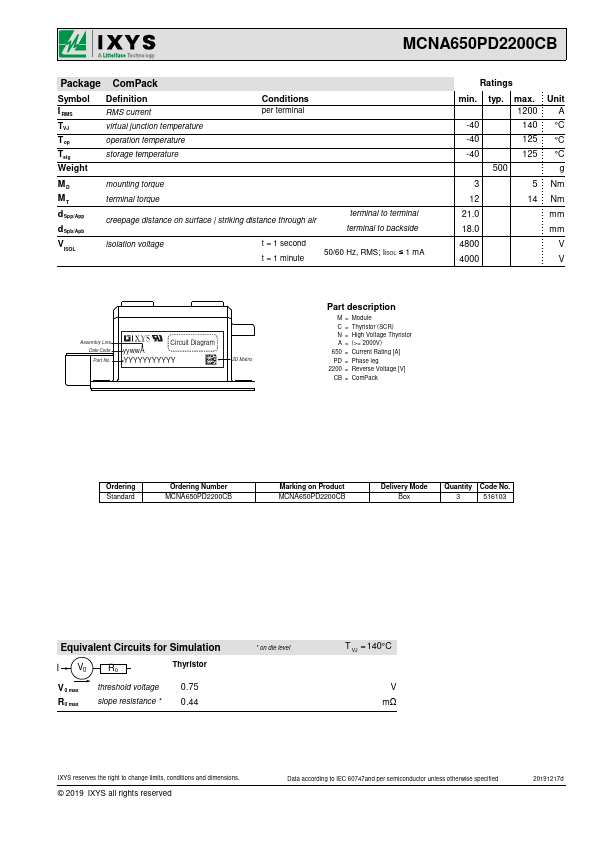

Equivalent Circuits for Simulation
I V0
R0
Thyristor
V 0 max R0 max
threshold voltage slope resistance
0.75 0.44
on die level
T VJ = 140°C
V mΩ
IXY

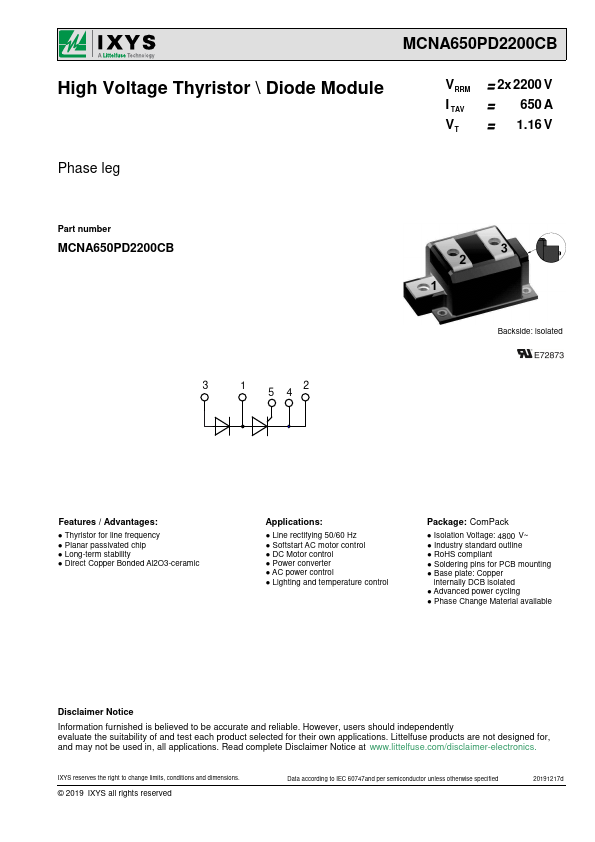

Features
- / Advantages:.
- Thyristor for line frequency.
- Planar passivated chip.
- Long-term stability.
- Direct Copper Bonded Al2O3-ceramic.

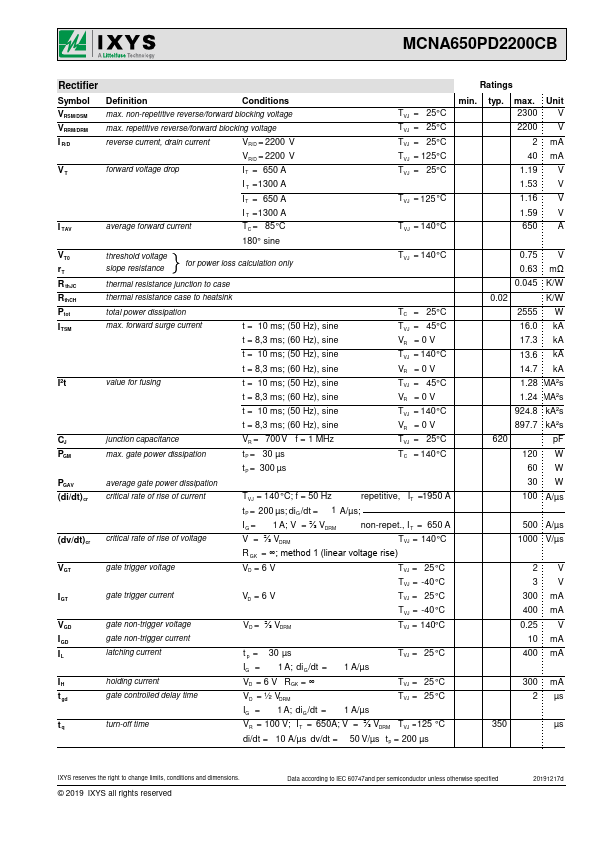

MCNA650PD2200CB Datasheet
