MCMA120UJ1800ED - Thyristor

Product Overview

IXYS

📥 Download Datasheet

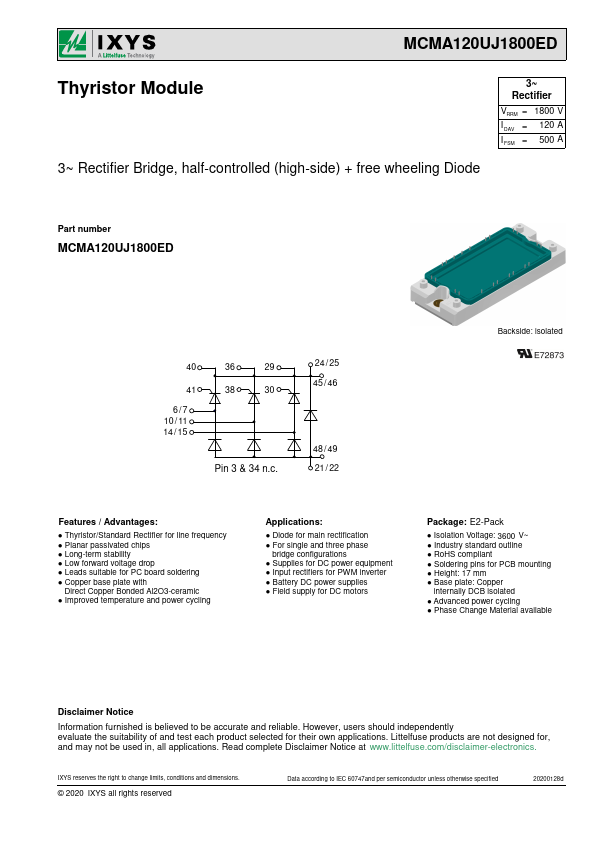

MCMA120UJ1800ED Thyristor by IXYS - Datasheet Preview — Datasheet preview – MCMA120UJ1800ED

Datasheet Details

Part number	MCMA120UJ1800ED
Manufacturer	IXYS
File Size	396.41 KB
Description	Thyristor
Datasheet	MCMA120UJ1800ED Datasheet

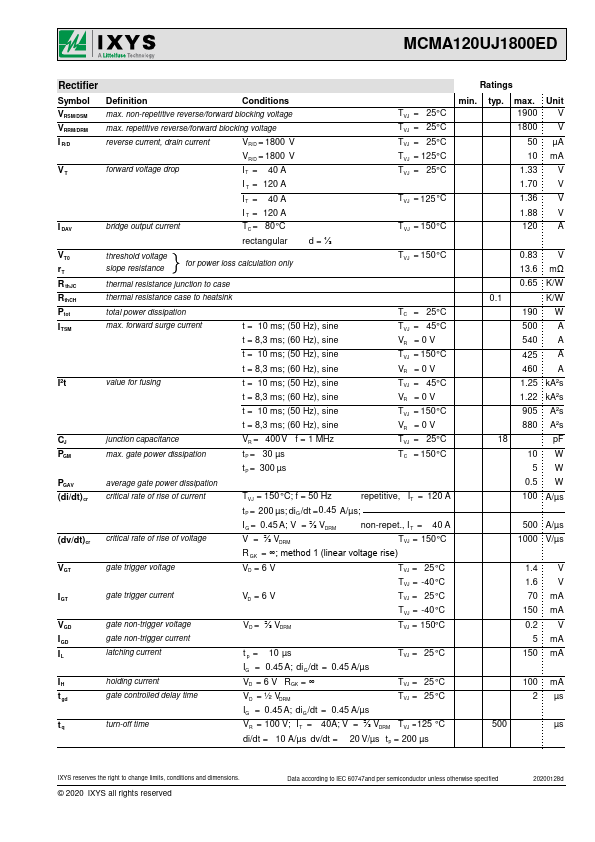

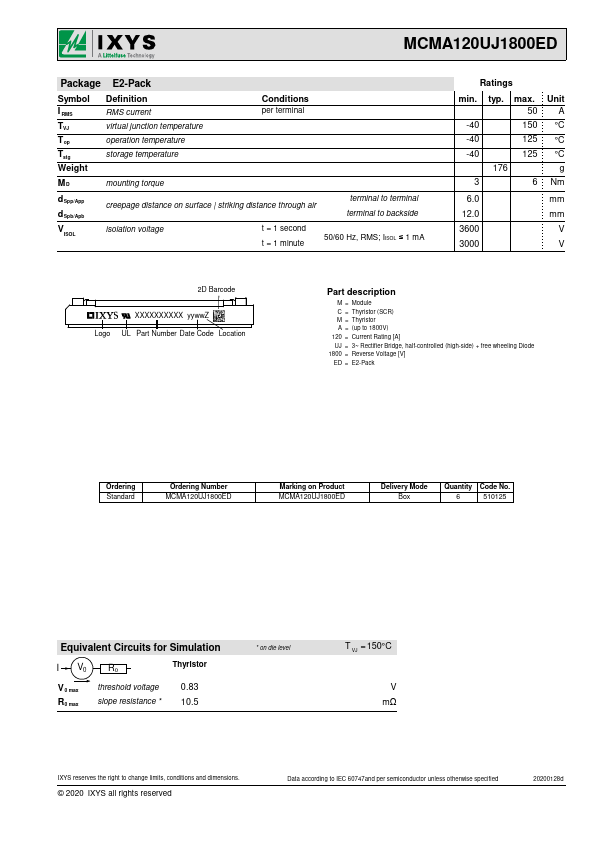

Additional preview pages of the MCMA120UJ1800ED datasheet.

Product details

Description

M = Module C = Thyristor (SCR) M = Thyristor A = (up to 1800V) 120 = Current Rating [A] UJ = 3~ Rectifier Bridge, half-controlled (high-side

Features

/ Advantages:.
Thyristor/Standard Rectifier for line frequency.
Planar passivated chips.
Long-term stability.
Low forward voltage drop.
Leads suitable for PC board soldering.
Copper base plate with Direct Copper Bonded Al2O3-ceramic.
Improved temperature and power cycling.
