MCD312-18io1 - Thyristor / Diode Module

Features

  • / Advantages:.
  • International standard package.
  • Direct copper bonded Al2O3-ceramic with copper base plate.
  • Planar passivated chip.
  • Keyed gate/cathode twin pins.

📥 Download Datasheet

📁 Similar Datasheet

  • MCD312 - Thyristor Modules Thyristor/Diode Modules (IXYS Corporation)
  • MCD310 - Thyristor Modules Thyristor/Diode Modules (IXYS Corporation)
  • MCD3711Z - N-Channel MOSFET (Freescale)
  • MCD-10011AD - SINGLE DIGIT LED DISPLAY (MCD)
  • MCD-10011AE - SINGLE DIGIT LED DISPLAY (MCD)
  • MCD-10011AG - SINGLE DIGIT LED DISPLAY (MCD)
  • MCD-10011AS - SINGLE DIGIT LED DISPLAY (MCD)
  • MCD-10011AUE - SINGLE DIGIT LED DISPLAY (MCD)
  • MCD-10011AUY - SINGLE DIGIT LED DISPLAY (MCD)
  • MCD-10011AY - SINGLE DIGIT LED DISPLAY (MCD)
Other Datasheets by IXYS

Full PDF Text Transcription

Click to expand full text

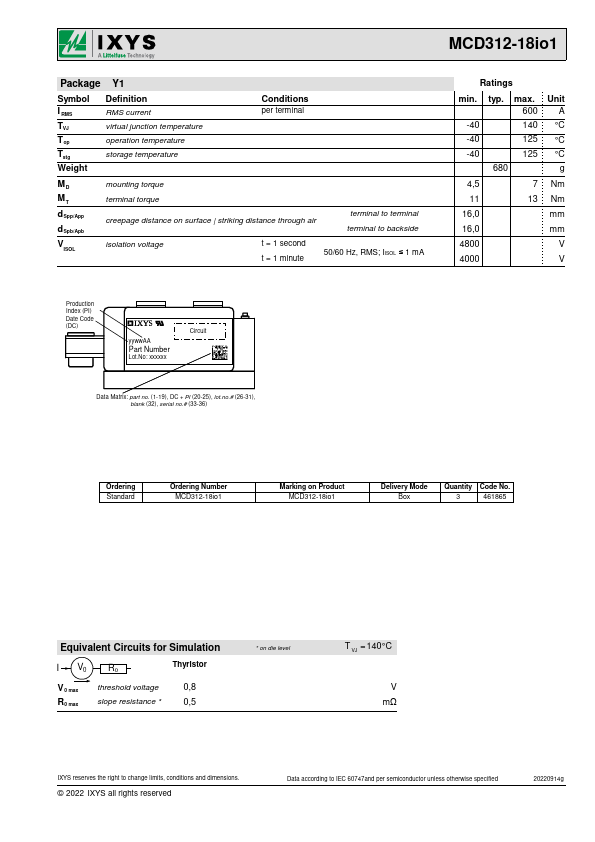

Thyristor Diode Module Phase leg Part number MCD312-18io1 3 1 5 42 MCD312-18io1 VRRM I TAV VT = 2x 1800 V = 320 A = 1,06 V Backside: isolated Features / Advantages: ● International standard package ● Direct copper bonded Al2O3-ceramic with copper base plate ● Planar passivated chip ● Keyed gate/cathode twin pins Applications: ● Motor control, softstarter ● Power converter ● Heat and temperature control for industrial furnaces and chemical processes ● Lighting control ● Solid state switches Package: Y1 ● Isolation Voltage: 4800 V~ ● Industry standard outline ● RoHS compliant ● Soldering pins for PCB mounting ● Base plate: Copper internally DCB isolated ● Advanced power cycling Disclaimer Notice Information furnished is believed to be accurate and reliable.
