MCD161-22io1 - High Voltage Thyristor / Diode Module

Features

  • / Advantages:.
  • Thyristor for line frequency.
  • Planar passivated chip.
  • Long-term stability.
  • Direct Copper Bonded Al2O3-ceramic.

📥 Download Datasheet

📁 Similar Datasheet

  • MCD161 - High Voltage Thyristor Module (IXYS Corporation)
  • MCD109 - DVD Micro Theatre Service Manual (Philips)
  • MCD122 - DVD Micro System Service Manual (Philips)
  • MCD129 - DVD Micro Theatre Service Manual (Philips)
  • MCD132 - Thyristor Modules Thyristor/Diode Modules (IXYS Corporation)
  • MCD135 - 50W Classic DVD Micro System Service Manual (Philips)
  • MCD139 - DVD Micro Theatre Manual (Philips)
  • MCD139B - DVD Micro Theater Manual (Philips)
  • MCD196 - DVD Micro theatre Service Manual (Philips)
  • MCD-10011AD - SINGLE DIGIT LED DISPLAY (MCD)
Other Datasheets by IXYS

Full PDF Text Transcription

Click to expand full text

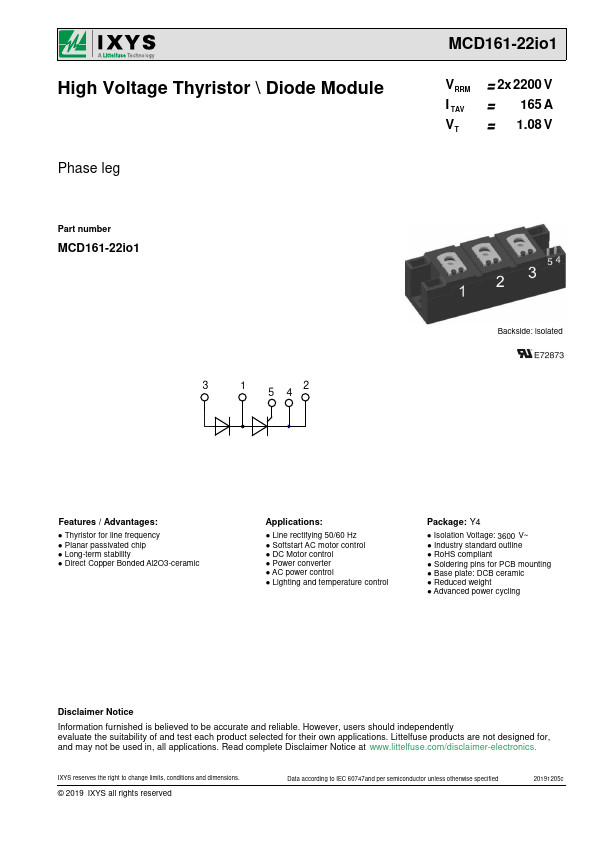

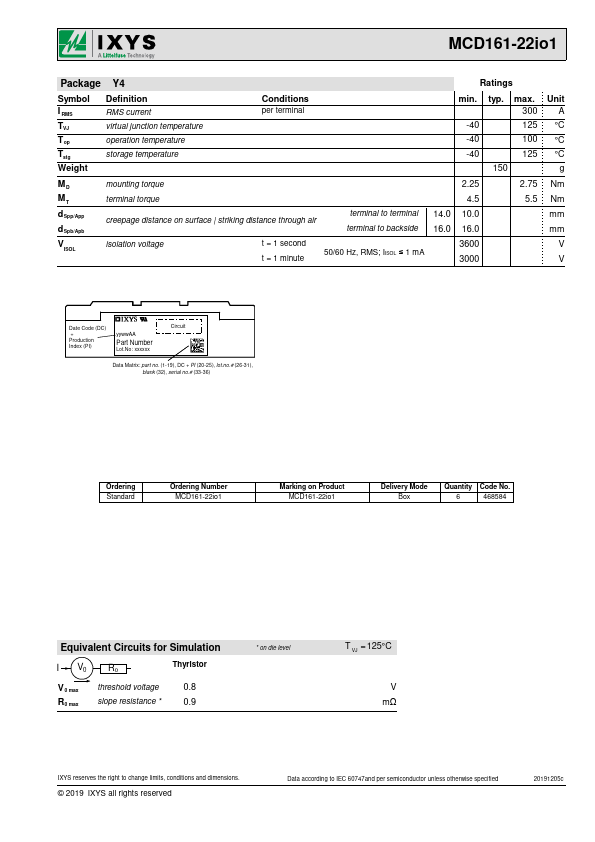

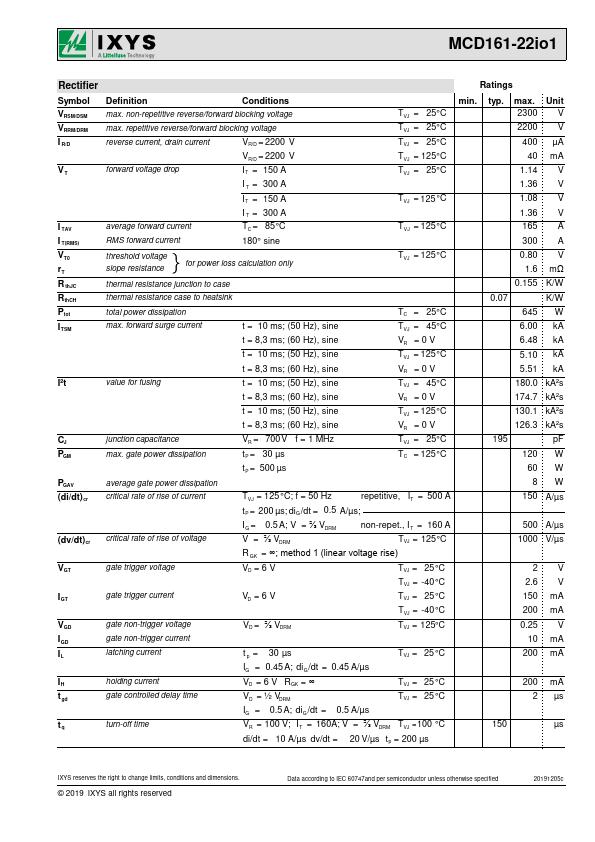

High Voltage Thyristor Diode Module Phase leg Part number MCD161-22io1 MCD161-22io1 VRRM I TAV VT = 2x 2200 V = 165 A = 1.08 V 3 1 5 42 Backside: isolated Features / Advantages: ● Thyristor for line frequency ● Planar passivated chip ● Long-term stability ● Direct Copper Bonded Al2O3-ceramic Applications: ● Line rectifying 50/60 Hz ● Softstart AC motor control ● DC Motor control ● Power converter ● AC power control ● Lighting and temperature control Package: Y4 ● Isolation Voltage: 3600 V~ ● Industry standard outline ● RoHS compliant ● Soldering pins for PCB mounting ● Base plate: DCB ceramic ● Reduced weight ● Advanced power cycling Disclaimer Notice Information furnished is believed to be accurate and reliable.
