MCD161-20io1 - High Voltage Thyristor / Diode

Features

  • / Advantages:.
  • Thyristor for line frequency.
  • Planar passivated chip.
  • Long-term stability.
  • Direct Copper Bonded Al2O3-ceramic.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MCD161 High Voltage Thyristor Module IXYS Corporation
MCD109 DVD Micro Theatre Service Manual Philips
MCD122 DVD Micro System Service Manual Philips
MCD129 DVD Micro Theatre Service Manual Philips
MCD132 Thyristor Modules Thyristor/Diode Modules IXYS Corporation

Other Datasheets by IXYS (Littelfuse)

Part Number Description
MCD161-22io1 High Voltage Thyristor / Diode Module
MCD160-30io3 Thyristor/Diode
MCD160-36io3 Thyristor/Diode
MCD162-08io1 Thyristor Diode Module
MCD162-12io1 Thyristor Module

Full PDF Text Transcription

Click to expand full text

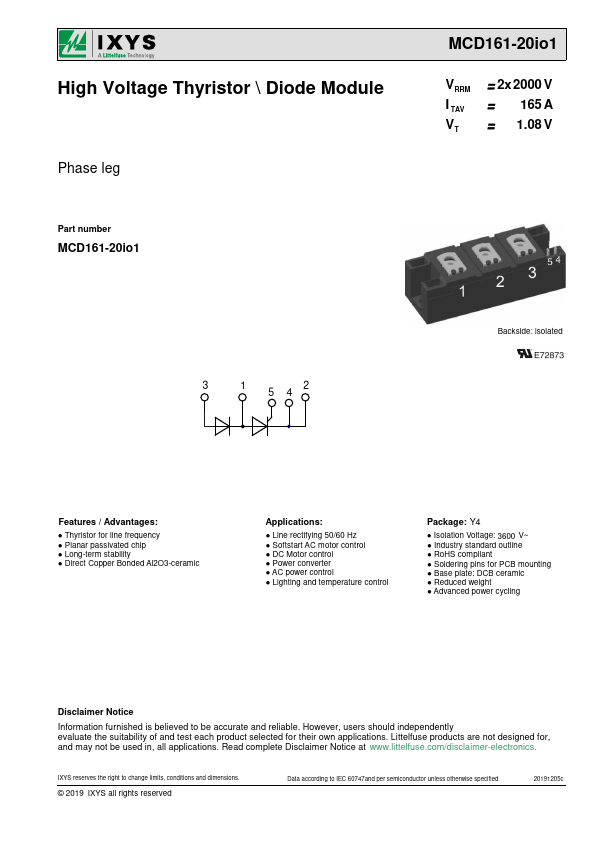

High Voltage Thyristor Diode Module Phase leg Part number MCD161-20io1 MCD161-20io1 VRRM I TAV VT = 2x 2000 V = 165 A = 1.08 V 3 1 5 42 Backside: isolated Features / Advantages: ● Thyristor for line frequency ● Planar passivated chip ● Long-term stability ● Direct Copper Bonded Al2O3-ceramic Applications: ● Line rectifying 50/60 Hz ● Softstart AC motor control ● DC Motor control ● Power converter ● AC power control ● Lighting and temperature control Package: Y4 ● Isolation Voltage: 3600 V~ ● Industry standard outline ● RoHS compliant ● Soldering pins for PCB mounting ● Base plate: DCB ceramic ● Reduced weight ● Advanced power cycling Disclaimer Notice Information furnished is believed to be accurate and reliable.
