MCC94-24io1B - Thyristor Module

MCC94-24io1B Description

Thyristor Module Phase leg Part number MCC94-24io1B 3 67 1 542 MCC94-24io1B VRRM I TAV VT = 2x 2400 V = 104 A = 1.46 V Backside: isolated Feat.

MCC94-24io1B Features

* / Advantages:
* Thyristor for line frequency
* Planar passivated chip
* Long-term stability

MCC94-24io1B Applications

* Line rectifying 50/60 Hz
* Softstart AC motor control
* DC Motor control
* Power converter
* AC power control
* Lighting and temperature control Package: TO-240AA
* Isolation Voltage: 4800 V~
* Industry standard outline
* RoHS compliant
* Soldering pins fo

📥 Download Datasheet

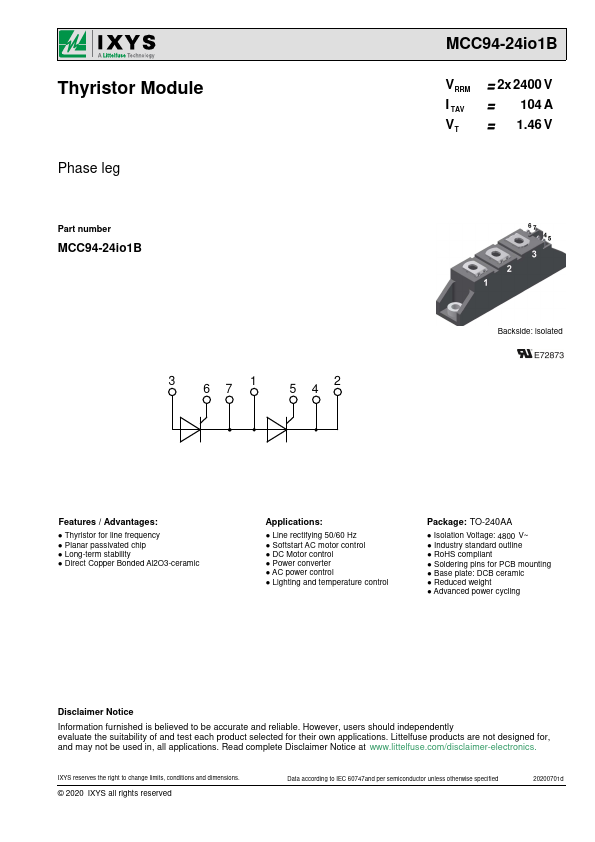

Preview of MCC94-24io1B PDF

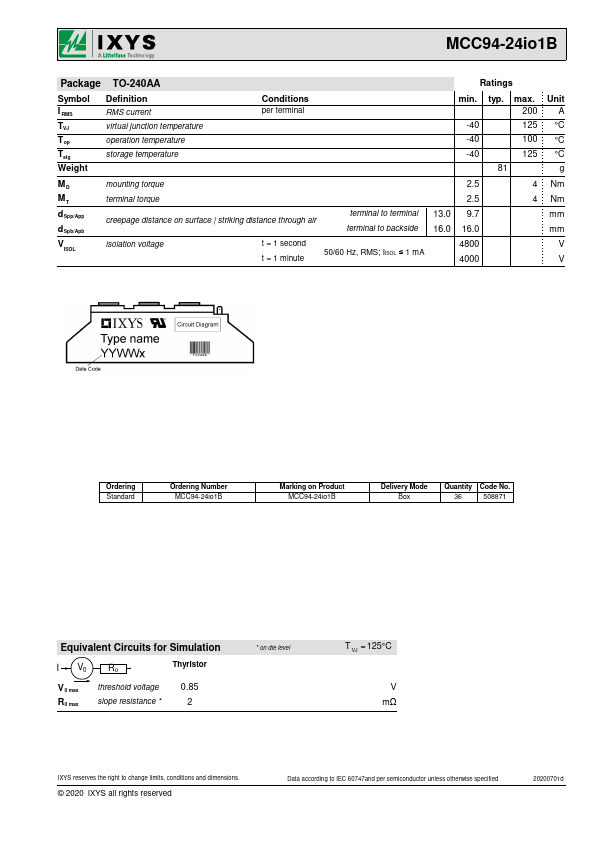

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MCC94-24io1B
Manufacturer
IXYS
File Size
423.96 KB
Datasheet
MCC94-24io1B-IXYS.pdf
Description
Thyristor Module
