M2413VC200 Datasheet (IXYS) - Fast Recovery Diode

M2413VC200, Fast Recovery Diode

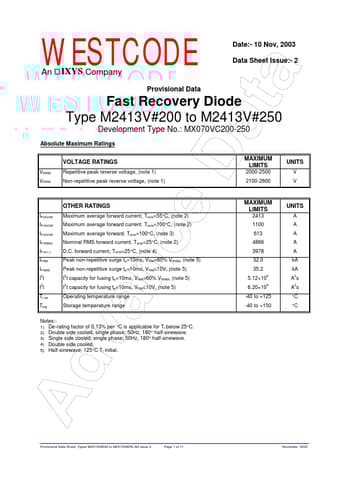

WESTCODE An IXYS Company Date:- 10 Nov, 2003 Data Sheet Issue:- 2 Provisional Data Fast Recovery Diode Type M2413V#200 to M2413V#250 Development Type No.: MX070VC200-250 Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 2000-2500 2100-2600 UNITS V V IF(AV)M IF(AV)M IF(AV)M IF(RMS) IF(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg OTHER RATINGS Maximum average forward current, Tsink=
