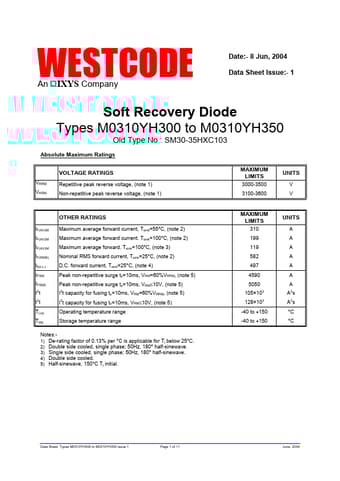

WESTCODE
An IXYS Company
Date:- 8 Jun, 2004 Data Sheet Issue:- 1
Soft Recovery Diode
Types M0310YH300 to M0310YH350
Old Type No.: SM30-35HXC103
Absolute Maximum Ratings
VRRM VRSM
VOLTAGE RATINGS
Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1)
MAXIMUM LIMITS
3000-3500
3100-3600
UNITS
V V
IF(AV)M IF(AV)M IF(AV)M IF(RMS) If(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg
OTHER RATINGS
Maximum average forward current, Tsink=55°C, (note 2) Maximum average forward current. Tsink=100°C, (note 2) Maximum average forward. Tsink=100°C, (note 3) Nominal RMS forward current, Tsink=25°C, (note 2) D.C.
