IXXK200N65B4, Extreme Light Punch Through IGBT

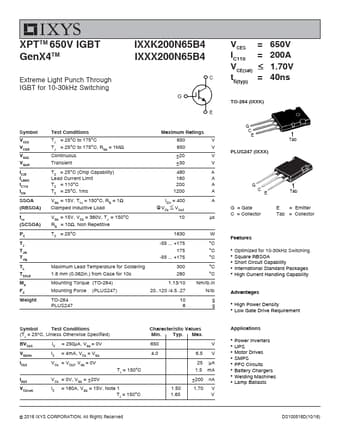

XPTTM 650V IGBT GenX4TM Extreme Light Punch Through IGBT for 10-30kHz Switching IXXK200N65B4 IXXX200N65B4 VCES = 650V IC110 = 200A V CE(sat)  1.70V tfi(typ) = 40ns TO-264 (IXXK) Symbol VCES VCGR VGES VGEM IC25 ILRMS IC110 ICM SSOA (RBSOA) tsc (SCSOA) PC TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient Maximum Ratings 650 V 650 V ±20 V ±30 V TC = 25°C (Chip Capability) Lead Current Limit TC = 110°C TC =

IXXK200N65B4 Features

* Optimized for 10-30kHz Switching

* Square RBSOA

* Short Circuit Capability

* International Standard Packages

* High Current Handling Capability Advantages

* High Power Density

* Low Gate Drive Requirement Applications

* Power Inverters

* UPS

* Motor Drives
